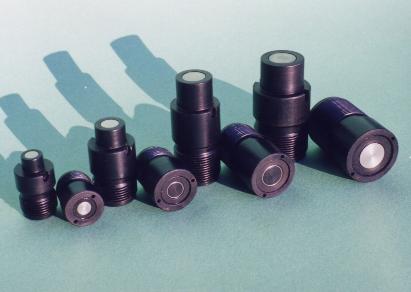

Anti-pollution quick connections for automation equipments . Couplings with pressure at 200 bar RCTAP.S series

FEATURES
ANTI-POLLUTION : of lost during the coupling / de-coupling
SPRING PROTECTION : from fluid depostion and crusts during drying process
REPEATABILITY : high and concerning the use
ADAPTABILITY : easy modalities of installation / disassembly
MODULARITY : perfect interchangeableness and coupling between the parts

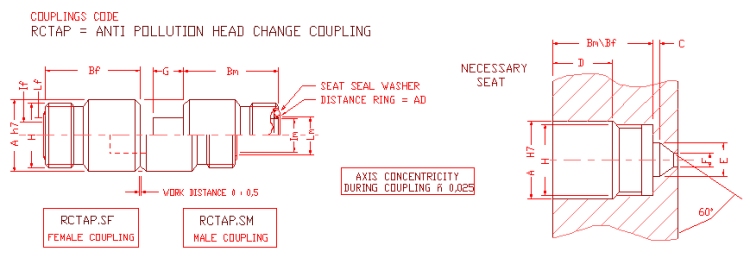

DIMENSIONS DATA : COUPLINGS AND KEYIND SEATS





DN Ah7 Bm Bf C D E F G H Im Lm If Lf AD COUPLING PRESSURE CODE
4 21 27.4 27.4 3 12.5 8 4 8 20x1.5 10 12.5 8 9 NO 0 bar P0
7 25 34.3 34.3 3 17.5 12 7 11 M24x1.5 12 15 11 13.5 NO 0 bar
9 27 46 46 6 22 15.5 9 15.5 M26x1.5 15.5 18 14 17 NO 0 bar
13 33 43.7 50.7 8 19 21 13 17 M32x1.5 23 25 18 23 NO 0 bar
4 - - - - - - - - - - - - - - - P2
7 25 34.3 34.3 3 17.5 12 7 11 M24x1.5 12 15 11 13.5 SI 200 bar
9 27 46 46 6 22 15.5 9 15.5 M26x1.5 15.5 18 14 17 SI 200 bar
13 33 50.7 50.7 8 19 21 13 16.5 M32x1.5 23 25 18 23 SI 200 bar

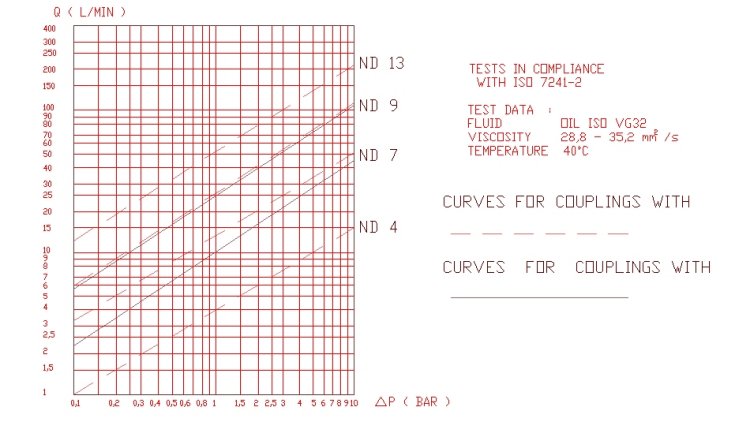

DIAGRAMS : CAPACITY - CHARGE LOSTS

Remarks
  • Clutches could couple themselves with the mentioned coupling pressure .
  • The coupling pressure could be on the female part and on the male part
  • Coupling is with pressure but without capacity
  • It's important to be care of the concentricity during the coupling
  • For details , contact our Technical Department

The constructor , in order to improve the product , will change dimensions without  advance notice
